XY-DemoRad

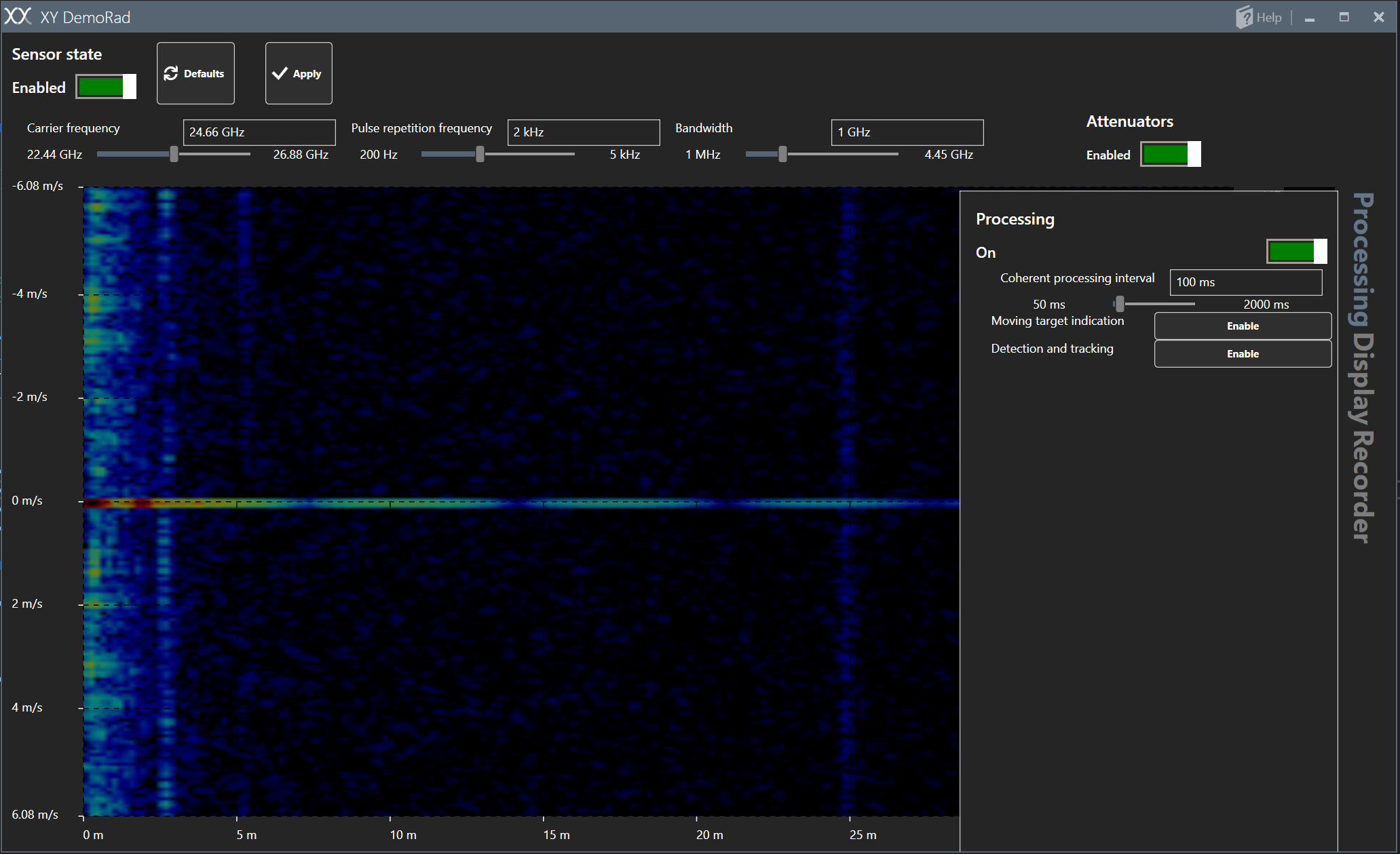

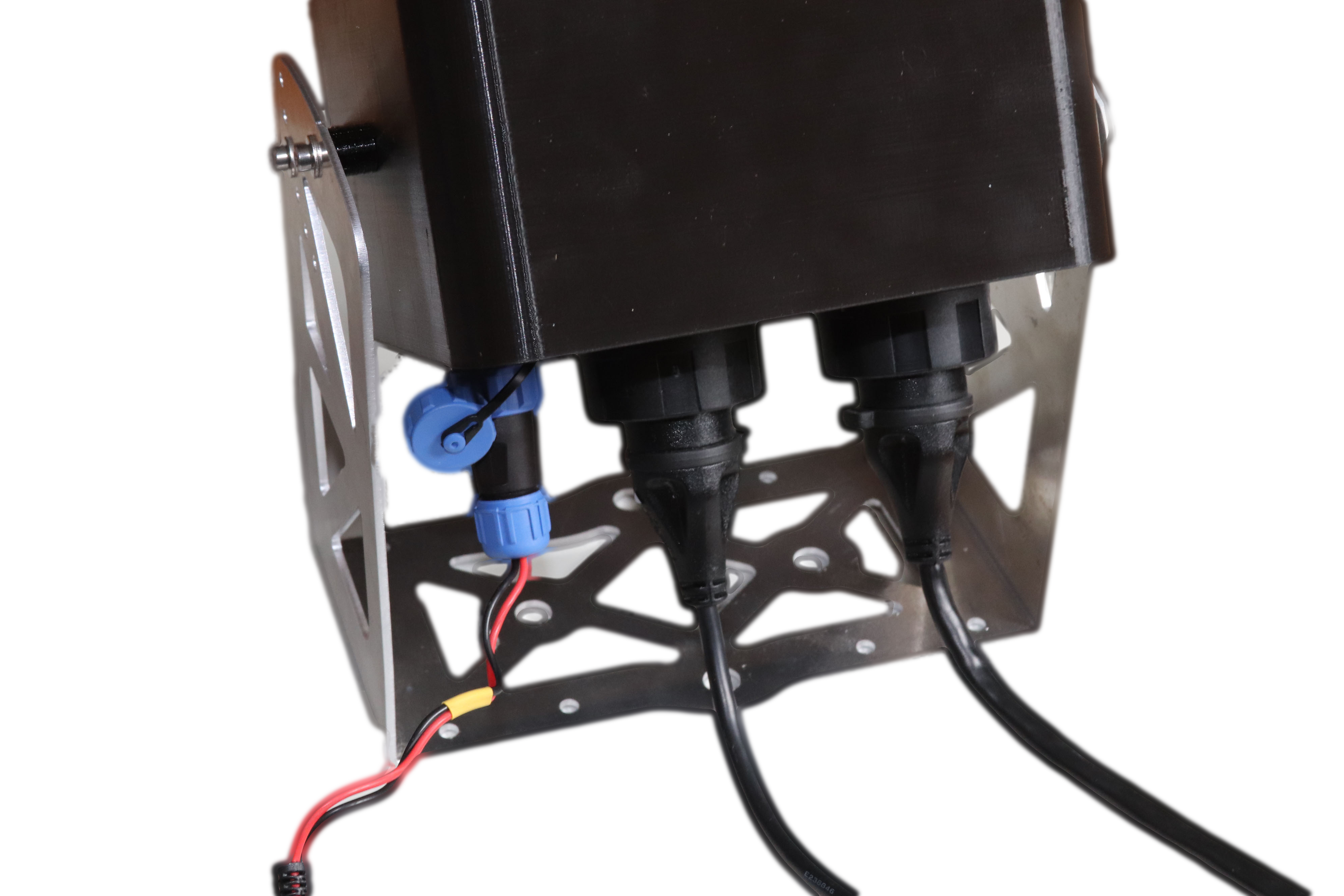

XY-DemoRad is an FMCW (High resolution Frequency-Modulated Continuous-Wave) radar with LFM (Linear Frequency Modulation) waveform. XY-DemoRad allows for accessing the raw IF signal data, which may be stored on the hard-drive of your PC for further processing or processed on-line. Both tasks may be accomplished using included Windows application.

The XY-DemoRad can use one of two exchangeable RF front-ends – for 24 GHz or for 120 GHz. Primary technical parameters of both configurations are listed below.

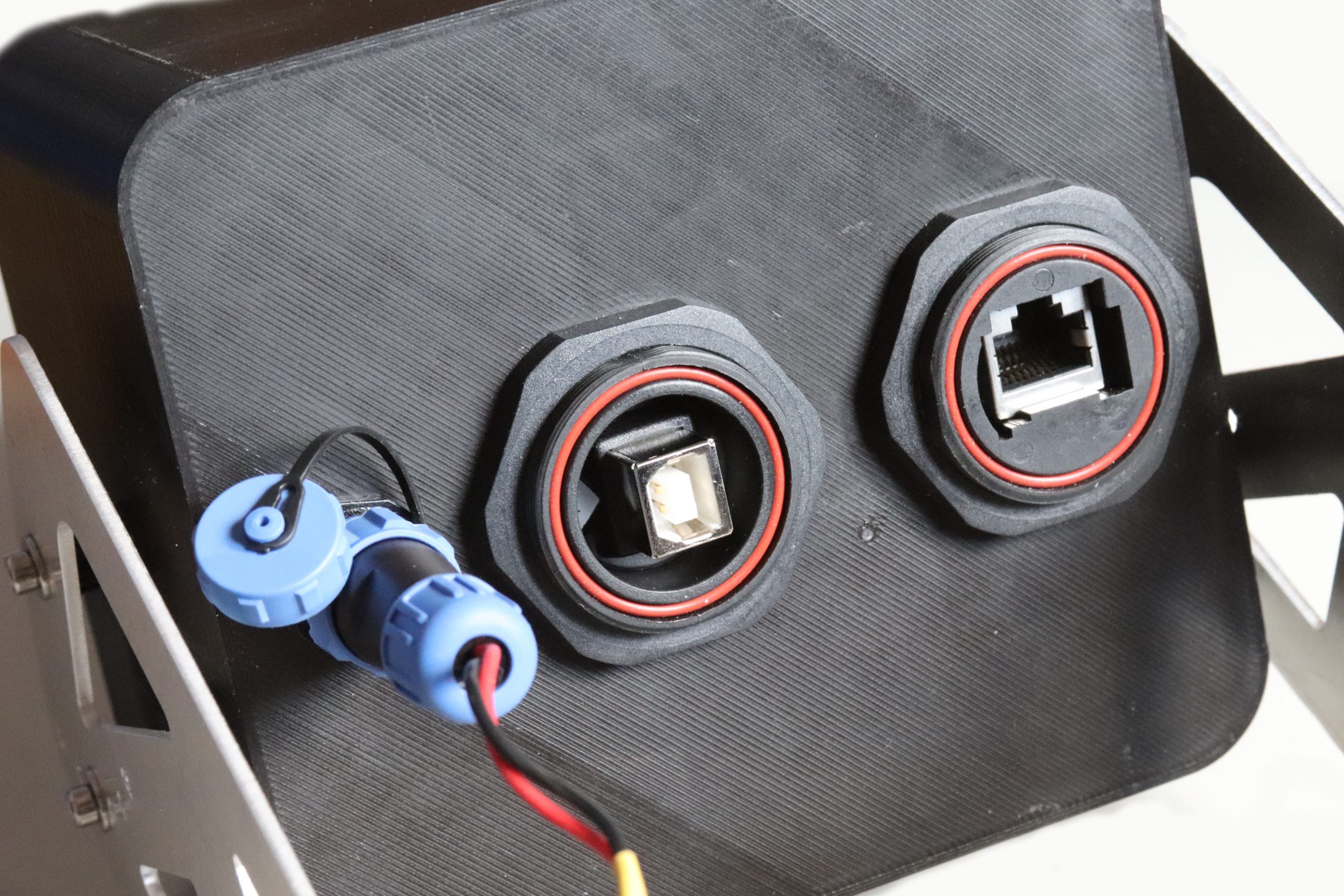

Network Protocol

Software Manual

FMCW radar

Frequency-Modulated Continuous-Wave

IQ raw data access

for streaming or real-time processing

24 GHz Front-End

Specification

Carrier Frequency	24 GHz
Maximum bandwidth	10 – 250 MHz with possibility to extend to several GHz
Frequency Range	23.2 – 26.3 GHz
Pulse Repetition Frequency	0.1- 5kHz
IF Bandwidth	1 MHz
Detection Range	200 m for car-like objects, may be increased by coherent integration
Transmitted power	4 dBm
Finest range resolution	88.5 mm
Maximal cross range resolution	3 cm
Antenna elevation beamwidth	30^°
Antenna azimuth beamwidth	30^°
Length	15 cm
Width	10 cm
Height	6 cm
Weight	0.3 kg
Supply Voltage	5 V
Supply power	20 W

122 GHz Front-End

Specification – Alternative Module

Carrier Frequency	122 GHz
Maximum bandwidth	10 – 250 MHz with possibility to extend to several GHz
Frequency Range	119.1 – 125.4 GHz
Pulse Repetition Frequency	0.1- 5kHz
IF Bandwidth	1 MHz
Detection Range	40 m for car-like objects, with the focusing lens
Transmitted power	– 3 dBm
Finest range resolution	27 mm
Antenna elevation beamwidth	60^°/8^° with lens
Antenna azimuth beamwidth	60^°/8^° with lens
Length	15 cm
Width	10 cm
Height	6 cm
Weight	0.3 kg
Supply voltage	5 V
Supply power	20 W
